Processing with Supplied Drawings

Your Professional Processing with Supplied Drawings Supplier

The company is located in the industrial zone of Yin Yang Town, Qidong City, Jiangsu Province, covers an area of 7,000 square meters, of which the construction area is about 2,500 square meters, the company was established on May 31, 2016, the registered capital of 20 million.We specialize in personalized parts and mass customization ."More varieties, less batches" mixing is our production mode.

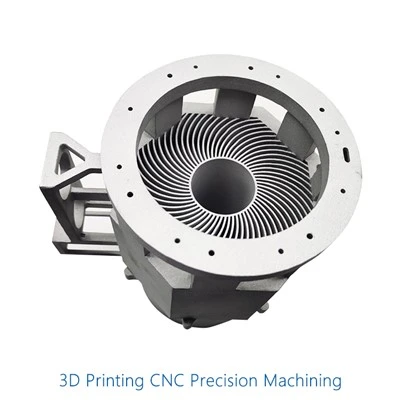

Aluminum Alloy Processing
Customers provide drawings, analyze drawing requirements, and develop production processes. Place an order in the MPR production management system, generate a traceable QR code, and use the QR...
read more

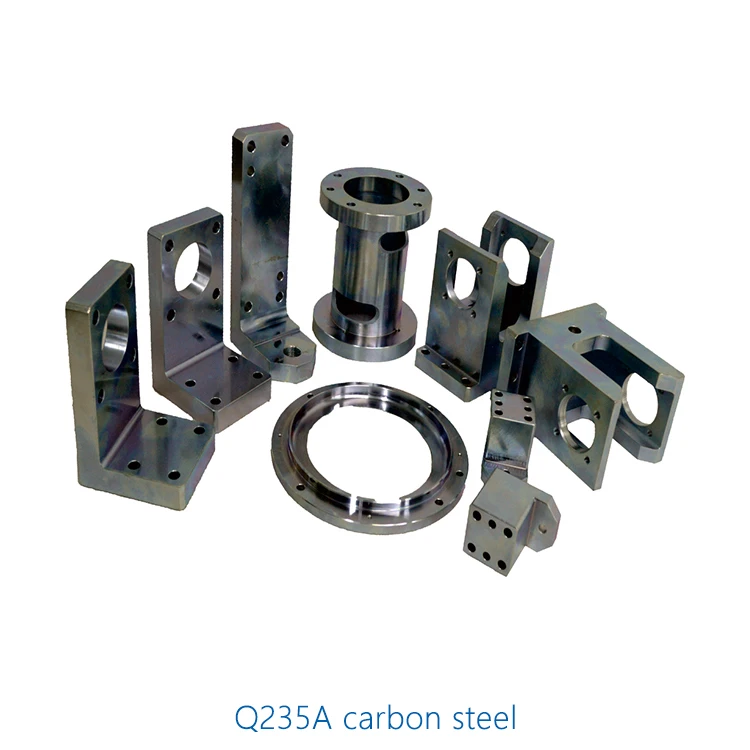

Carbon Steel Alloy
Customers provide drawings, analyze drawing requirements, and develop production processes. Place an order in the MPR production management system, generate a traceable QR code, and use the QR...
read more

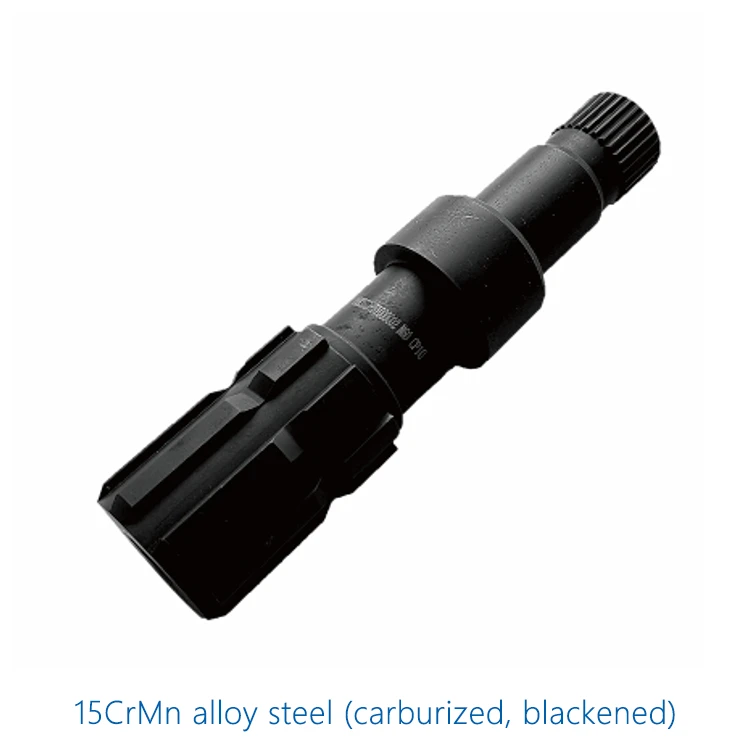

Die Steel
Customers provide drawings, analyze drawing requirements, and develop production processes. Place an order in the MPR production management system, generate a traceable QR code, and use the QR...
read more

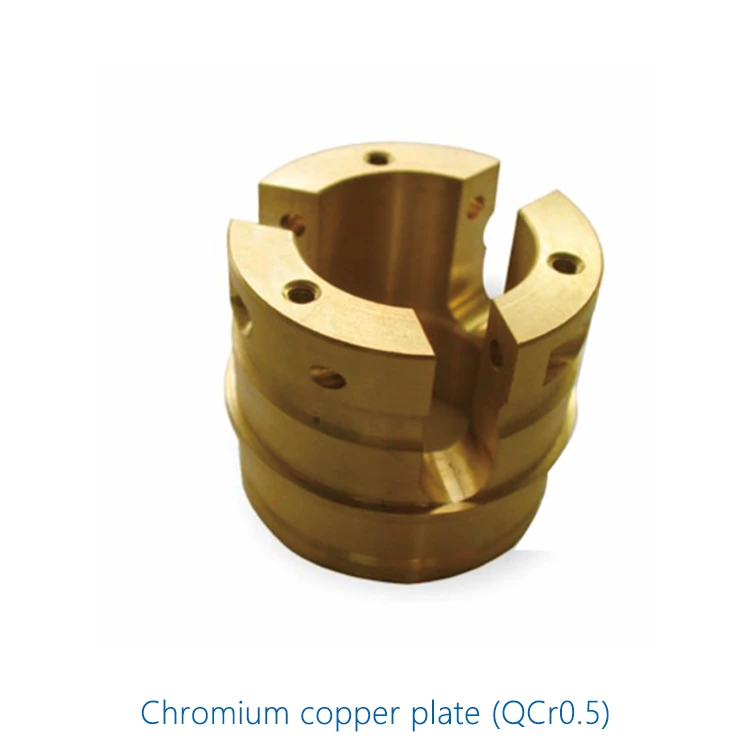

Copper Alloy Class
Customers provide drawings, analyze drawing requirements, and develop production processes. Place an order in the MPR production management system, generate a traceable QR code, and use the QR...
read more

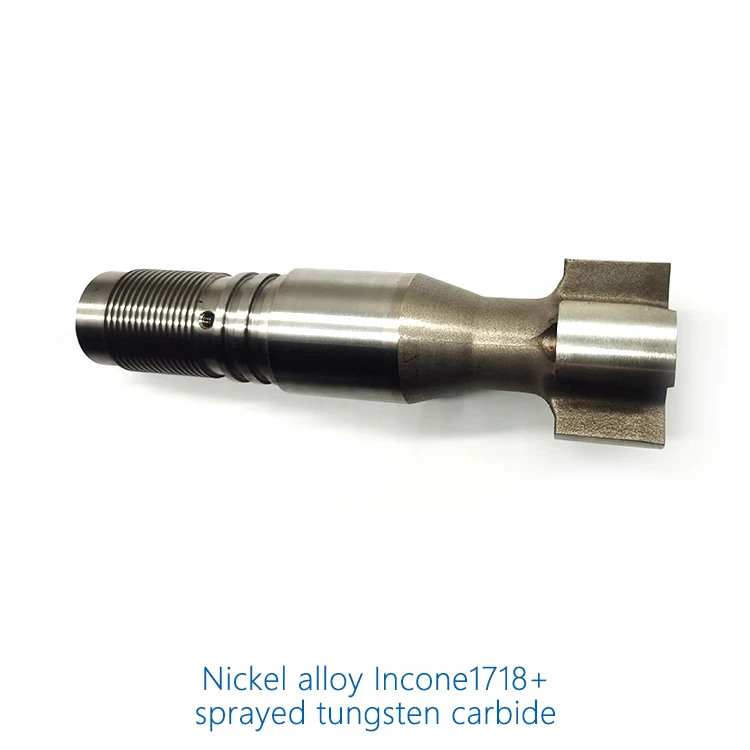

Processing Of Special Materials
Customers provide drawings, analyze drawing requirements, and develop production processes. Place an order in the MPR production management system, generate a traceable QR code, and use the QR...
read more

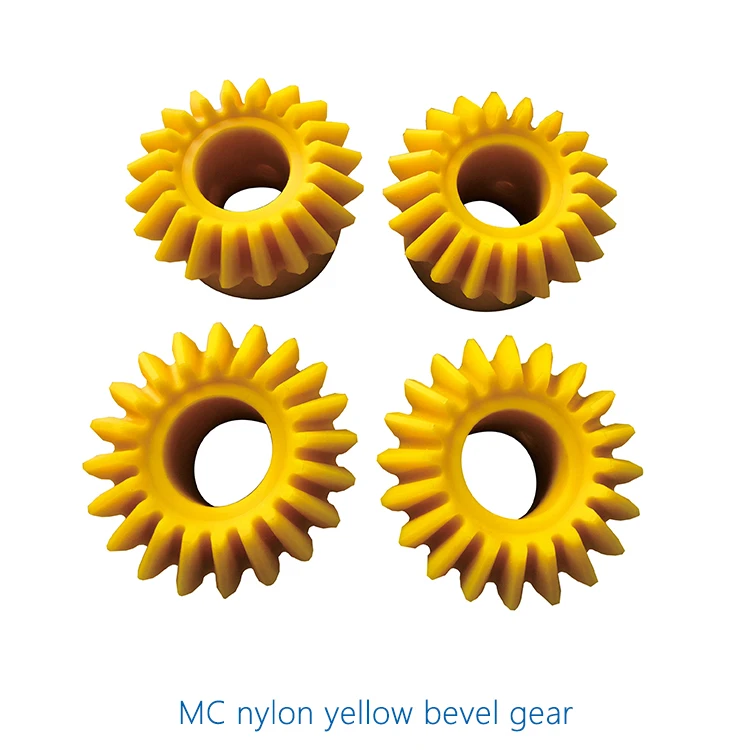

Processing Of Engineering Plastics
Customers provide drawings, analyze drawing requirements, and develop production processes. Place an order in the MPR production management system, generate a traceable QR code, and use the QR...
read more

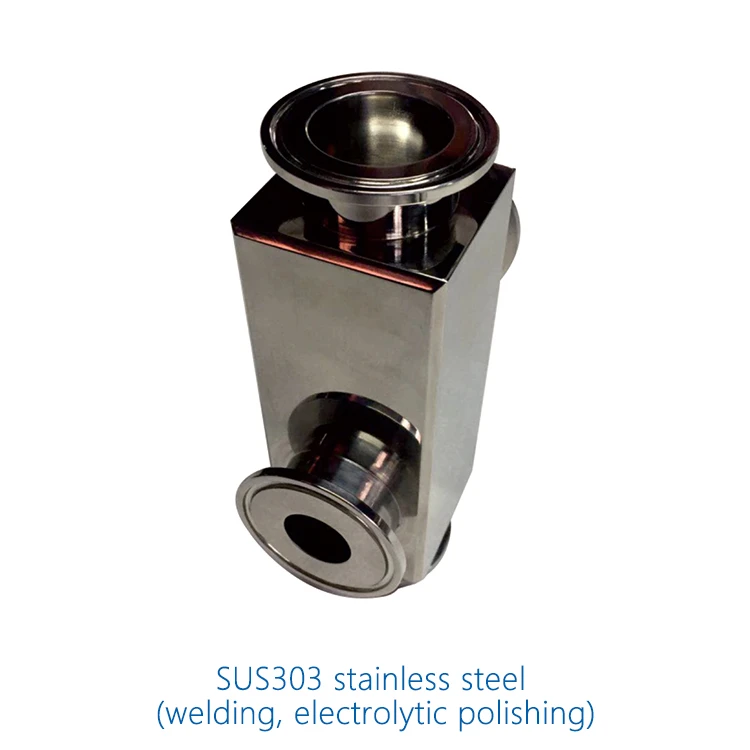

Stainless Steel Processing
Customers provide drawings, analyze drawing requirements, and develop production processes. Place an order in the MPR production management system, generate a traceable QR code, and use the QR...
read more

Why Choose Us

Bring your own raw materials

To meet the differentiated material needs of customers, the material warehouse has dozens of industrial grade raw materials such as carbon steel, mold steel, stainless steel, aluminum alloy, engineering plastics, etc. on hand.

Quality control

Strictly follow the ISO9001-2015 international quality management system, manage the site through 5S visualization, and ensure that each processing step is complete and operates according to the design requirements of the drawings.

Fully equipped, fast delivery time

The company has complete equipment such as CNC, turning, milling, grinding, wire cutting, EDM, sawing machines, etc., which can be flexibly adjusted to respond to customers' rapid delivery needs.

30 years of customized machining experience

Years of customized processing services have accumulated rich experience for us, covering automotive equipment, automotive electronics, semiconductors, medical devices, optical instruments and meters, food and drug packaging machinery, green energy, precision injection molds, university research institutions, and other fields.

Our Processing Includes

Aluminum Alloy Processing

Customers provide drawings, analyze drawing requirements, and develop production processes. Place an order in the MPR production management system, generate a traceable QR code, and use the QR code to understand the production status of the components and trace the production process.

Die Steel

Stainless Steel Processing

Processing with Supplied Drawings Specifications

Aluminum Alloy Processing

Process:	CNC Machining, CNC turning, CNC milling, CNC lathe machining, CNC boring, CNC grinding, CNC drilling, Laser Cutting, Bending,Spinning, Wire Cutting, Stamping, Electric Discharge Machining (EDM),Injection Molding,3D printing services etc...
Material:	Titanium (TA1,TA2/GR2,TA4/GR5, TC4,TC16,TC18,TC21,TC22,TC26,TC118B etc.) Aluminum (6061-T6,6063,7075-T6,5052) etc... Brass / Copper/ Bronze etc... Stainless steel (302,303, 304, 316,420) etc... Steel (S136H, Q235,20#,45#)etc... Aluminum alloy/Magnesium alloy(Vanadium (V), Niobium (Nb), Tantalum(Ta), Chromium (Cr), Molybdenum (Mo), Tungsten(W), Rhenium (Re), Titanium(Ti), Zirconium(Zr), Hafnium (Hf), etc.) Plastic(Acetal/POM/PA/NyIon/PC/PMMA/PVC/PU/AcryiC/ABS/PTFE/PEEK)etc.
Surface Treatment:	Clear/color anodized, Hard anodized, Powder-coating, Sand-blasting, Painting;Nickel plating; Chrome plating; Zinc plating;Silver/gold plating, Black oxide coating, Polishing etc..
Tolerance:	±0.01~±0.005mm (100% QC quality inspection before delivery, can provide quality inspection form)
Packaging :	Standard:Pearl cotton and bubble bag, Carton box and seal For large and big quantity: Pallet or as per customers' requirement Eco-friendly: Recycling boxes and newspapers, Less plastic.
File Formats	Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF etc

Die Steel

Product Name	Customized Die Steel
Mould Material	H13/H11/Carbon tungsten alloy
Cavity	Max to 10 cavity,customized.
Surface treatment	High quality Vacuum heat treatment and nitriding.
Hardness	Webster hardness HRC 48-52°
Mould life Output	More than 6 Tons aluminum Profiles
Design Software	Computer simulation,Auto CAD.
Equipped Plant	Extruder press, die oven, billet furnace
Max size of extrusion die	Outer diameter up to 1,700mm
Packing	Fumigation free plywood box,carton box,etc.
Delivery time	Within 15 working days.
Application	Tooling for the press to produce aluminum profile such as window profiles,industrial profiles,door profiles and profiles for curtain wall,ect.
Advantage	1.Low MOQ: 1 set. 2.OEM Accepted : We can produce any your design . 3.Good Service : We treat clients as friend. 4.Good Quality :We have strict quality control system .Good reputation in the market. 5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract)

Stainless Steel Processing

Designing	According to customers' drawings and samples.
Materials	Steel, Stainless steel, Copper, Brass, Aluminum, Zinc alloy.
Surface Finish	Electric plating,Sand blasting,Powder coating, Lacquer, Paiting, Oxidization.
Process Flow	Stamping:Shearing-Blanking-Punching-Bending-Stretching-Turning up edging- Trimming-molding
	Spraying: Alkaline degreasing-Water scrubbing-Acid pickling-Waterscrubbing-Electrolytic-Degreasing-Surface-Conditioning-Phosphate-Spraying- Baking-Checking-Packing
	Plating:Alkaline degreasing-Water scrubbing-Acid pickling-Water scrubbing- Electrolytic-Degreasing-Neutralization-Plating-Water-Urubbing- Passivating- Sealing course-Baking
Certification	ISO9001:2008;SGS;ROHS
Testing	At least 72 hours salt spray test; Thickness of plating or coating

Applications

Aluminum Alloy Processing

Lighting industry

Application for lighting components specialized in heat sinks, reflective housings, and precision connectors, ensuring components meet strict performance, reliability, and aesthetic standards.

Automotive

The automotive industry relies on Processing with Supplied Drawings to produce high-precision parts for engines, transmissions, and other critical components.

Motorcycles

Engine components，suspension components，wheels，brakes，frame and chassis components，exhaust systems

Bicycle

Bike frames,forks,Handlebars,Pedals,Brake components,Cranksets,Hubs.

Die Steel

Shell for Intelligent Humanoid Robots: Custom arm shapes, custom screw components, custom leg and foot shapes, various deep-drawn parts.

Shell for Flying Cars: Custom shapes, various deep-drawn parts, etc.

Medical Equipment Components: Bracket parts, hydraulic forming parts, etc.

Photography Equipment: Various deep-drawn parts, aluminum tube processing parts, etc.

Sports Equipment: Various ball bladder, fitness equipment, etc.

Mobile Phone Accessories: Various phone holders, various metal parts.

Stainless Steel Processing

Medical industry - MRI scanners, dental equipment, joint replacements

Food processing industry - Food storage containers, handling equipment, cutting tools

Construction industry - Stainless steel railings, exterior decorative panels

Automotive industry - Exhaust systems, body frames, automotive parts (such as brake discs)

A Note about Our Customization

Features	CNC Milling Parts	CNC Turning Parts
Maximum Part Size	236" x 118" x 24" (6,000 x 3,000 x 610 mm)	62" Length x 32" Diameter (1,575 mm Length x 813 mm Diameter)

Minimum Feature Size	0.020″ (0.50 mm)	0.020″ (0.50 mm)

Estimated Delivery Time	3-7 working days	3-7 working days

Standard Tolerance	ISO 2768 MK	ISO 2768 MK

Precision Tolerance	±0.0002" (±0.005mm)	±0.0002" (±0.005mm)

Threads and Threaded Holes	Standard threads and holes available, also customizable.	Standard threads and holes available, also customizable.

Edge Conditions	Deburring by default.	Deburring by default.

Surface Smooth	Ra 0.4 - 1.6μm	Ra 0.4 - 1.6μm

Ordering Information

1. The price and pictures are for reference only, due to the particularity of the products, different specifications, different materials, different technical requirements, prices and pictures are not the same, please be sure to explain the specification materials and requirements, leave the way to contact you, We will contact you in time to give you a quote.

2. When contacting with our customer service staff, please tell us if you have purchased other products from our factory. Our company has record records for all customers so that you can easily find your original order information and save your precious time.

3. In order to provide you with the required products, please provide the product specifications, models and machine specific manufacturers, individual precision products also require you to provide your drawings, pictures or samples.

4.Standard parts we can be shipped within a week, non-standard parts of the cycle, according to your workpiece is difficult to set!

Packaging & Shipping

DHL/UPS/FEDEX/TNT/OCS is shipped by default. If the customer has demand, We can also choose express delivery according to the customer's requirements.

Generally, it takes 3 days to send the express to Japan, and 4-5 days to Europe and America. This is mainly for small pieces (within 300kg).

For large parts, we will use air or sea transportation according to customers' requirements. Generally, it takes 4-5 days to ship to Japan by air and 7-10 days to ship by sea. It takes 7-10 days to ship the goods by air in Europe and America, and 15-20 days to ship the goods by sea.

FAQ

Q: What shall we do if we do not have drawings?

A: Please send your samples to us with drafts (Thickness, Length, Height, Width), CAD or 3D files will be made by our engineer later on.

Q: Where can l get product&price information?

A: Send us e-mail , we will contact you as we receive your mail.

Q: How soon can l get samples?

A: Depending on your specific project, it usually takes 10 to 20 days.

Q: How to enjoy the OEM services?

A: Usually, base on your design drawings or original samples, we give some technical proposals and a quotation to you, after your agreement, we produce for you.

Q: Can you make machining parts based on our samples?

A: Yes, we can make measurement based on your samples to make drawings for machining parts making.

Q: ls it possible to know how are my products going on without visiting your company?

A: We will offer a detailed production schedule and send weekly reports with diqital pictures and videos which show the machining progress.

Q: Delivery time?

A: lf in Stock: around 3 days after payment, Mass production: around 15~25 days after receipt of deposit (Accurate delivery time depends on specific items and quantities)

As one of the most professional processing with supplied drawings suppliers in China, we're featured by high quality custom products with low price. Please rest assured to buy discount processing with supplied drawings from our factory. For free sample, contact us now.
